Modular Components and Engineered Systems To Meet Your Specific Requirement

We work with you to design a Conveyor System that meets your specifications and integrates with your process. Contact Steel Storage Systems for more information on Conveyor accessories and parts!

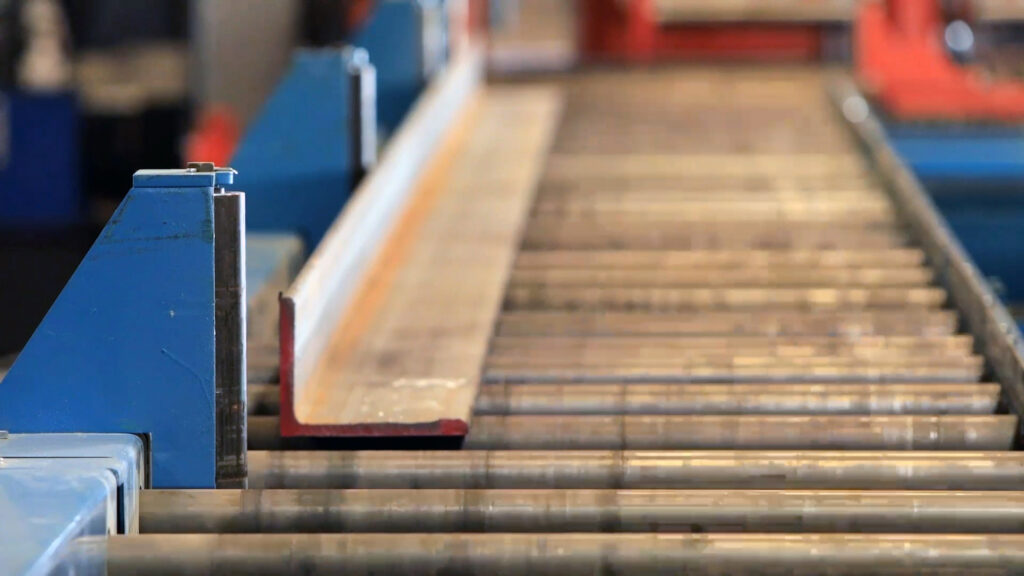

Vertical Guide Rollers

Vertical Guide Rollers are an option for Roller Conveyors to align material into a machine’s datum, typically on the saw infeed side. They are effective when used with Transfer and Cross Conveyors to square material as they feed. The standard height is 12”, and they can be customized in size and design. Vertical Guide Roller quantity is based on the range of lengths the conveyor system handles.

Squaring Systems

Squaring Systems are hydraulically powered arms that push material against a sturdy backstop to align material into a machine. The entire assembly is fitted to a Roller Conveyor Table.

Roller Conveyor Filler Plates

In both removable and fixed designs, Filler Plates are available for Roller Conveyors to fill gaps between rollers and support short, remnant material.

Vertical Guide Rollers & Lift Rollers

Lift Rollers are conveyor accessories that can be added to Roller Conveyors to assist material movement into and away from the machines they serve. They lift hydraulically with a ½” stroke and 5,000lb capacity. Vertical Guide Rollers and Lift Rollers are live when furnished with CDLR Powered Roller Conveyors.

Coolant Recovery Systems

Coolant Recovery Systems are offered for Roller Conveyors and connect to the system’s hydraulic power unit. Coolant Recovery comprises a drip pan under the rollers, PVC fittings, and pipe to plumb recovered coolant back to the saw.

Staging and Discharge Skids

Skids are stationary arms that bolt to the side of infeed and outfeed roller conveyors for staging and discharge functions, respectively. Skids are supplied in custom lengths, quantities, and spacings as desired. They provide a simple and inexpensive means to feed and remove material manually.
