SpaceSaver Cantilever Racks

Battery of Three-Tall SpaceSaver Cantilever Racks for Long Material

Custom Caged SpaceSaver Cantilever Rack with Extended Roll-Out Receptacle

One-Sided Cantilever SpaceSaver Rack Storing Angle and Steel Tubing

SpaceSaver Cantilever Rack with Extended Drawer and Receptacle Dividers

Battery of Cantilever SpaceSaver Racks Storing Various Types of Steel Tubing

SpaceSaver Roll-Out Cantilever Rack with Auxiliary Supports for Storing Short or Limber Material

Custom Caged SpaceSaver Cantilever Rack

Side-View of a SpaceSaver Cantilever Rack with Three Roll-Out Receptacles and a Fixed Fourth Storage Level

6T SpaceSaver Roll-Out Cantilever Rack

SpaceSaver for Round Finished Steel Bars

Conveyor Systems

Roller Conveyor with Lift-and-Carry Transfers for Handling Round Steel Tube

Roller Conveyor and Dual-Lift Transfer System

Cross Conveyor System for Bundles of Steel Channel

Outfeed Conveyor Pushbar Ejector System pushes Finished Material onto Skids

Transfer Conveyor System for Long Bundles of Round Steel Tubing

Measuring System and Workstop for Conveyor System

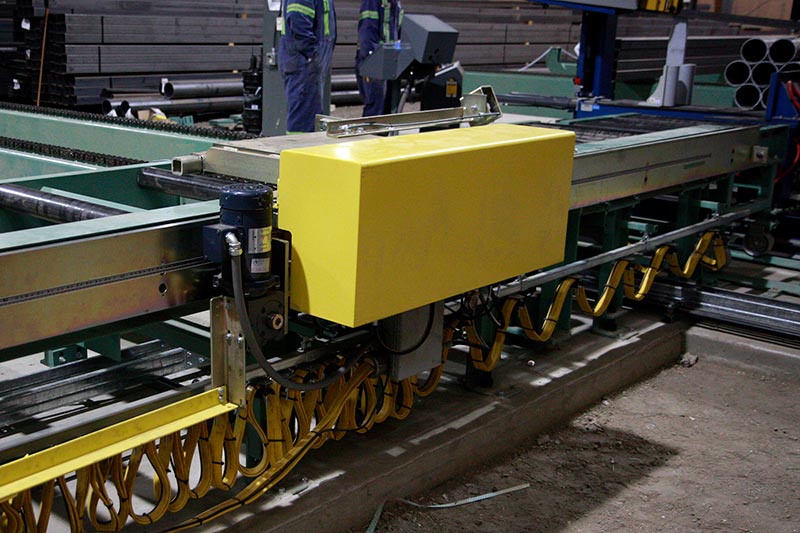

Measuring System and Work Stop for Conveyor System

Outfeed Roller and Transfer Conveyor

Measuring System Control Panel for Conveyor Features Live Video Screen

Cut-to-Length Conveyor System

Custom Cut-to-Length Conveyor System

Infeed and Outfeed Roller Conveyor for Round Steel Tube

Two Roller Conveyor Systems for Round Steel Tube

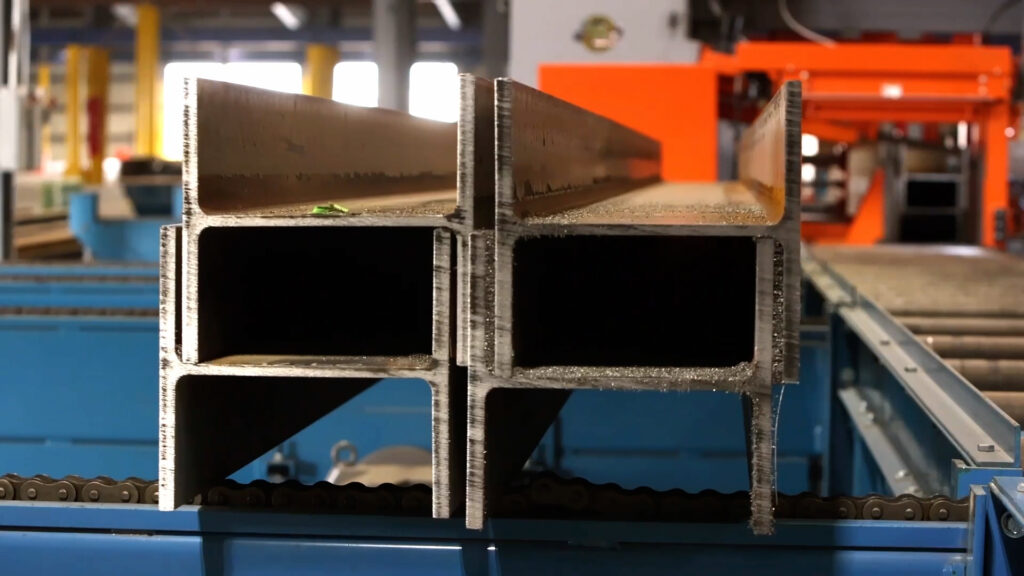

saw outfeed roller conveyor video still

Sheet Metal Racks

Custom Sheet Rack with Crank-Out Reduction Drive and Hinged Side-Frames

Custom Crank-Out Sheet Rack with Open Drawer

Double-Sided Crank-Out Sheet Rack

operator retrieves metal sheet from the drawer of a Double-Sided Crank-Out Sheet Rack

Battery of Custom Sheet Racks for Sheet Metal and Plate

4H Crank-Out Sheet Rack

Custom Handling Systems

Custom Plate Conveyor

Pivoting Roller Conveyor Section Installed Outdoors

Custom Roller Conveyor with special rollers for individual tube and pipe

Beam Splitter System with Finished Split I-Beam

Turntable Roller Conveyor Section

Custom Transfers Feeding Tube Laser System

Automated Packaging System for sprinkler pipe mill. System ejects 20' - 40' pipe off the mill exit, accumulates, bundles, transfers to a banding station, and loads packaged bundles of pipe.

Discharge Magazine on an automated mill Packaging System. Tubes are ejected off the mill exit conveyor onto an Inclined Accumulator Magazine that feeds a Bundler.

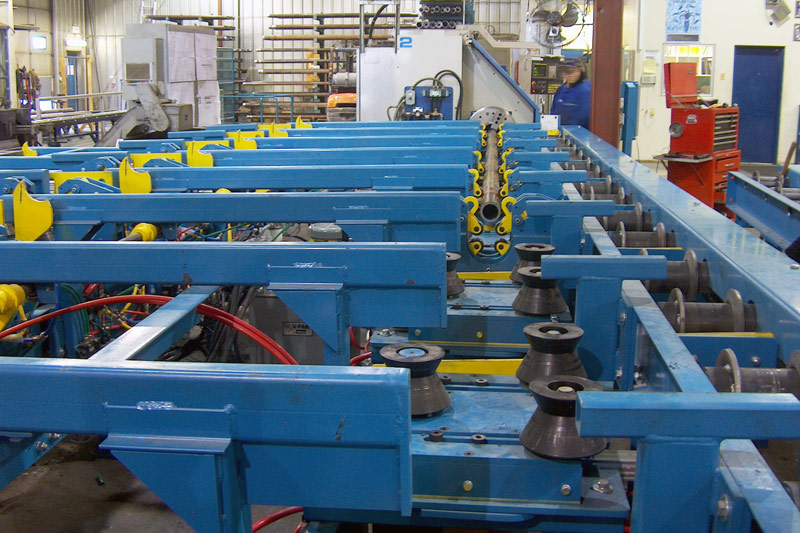

Powered feed conveyor to a CNC turning center. Feed features V pinch rollers and steady rests to support the pipe while being threaded.

Beam Splitter System with Staged I-Beam

Roller Conveyor Pivot Section

Bar Ejector System

Steel Tube Loading and Transfer System

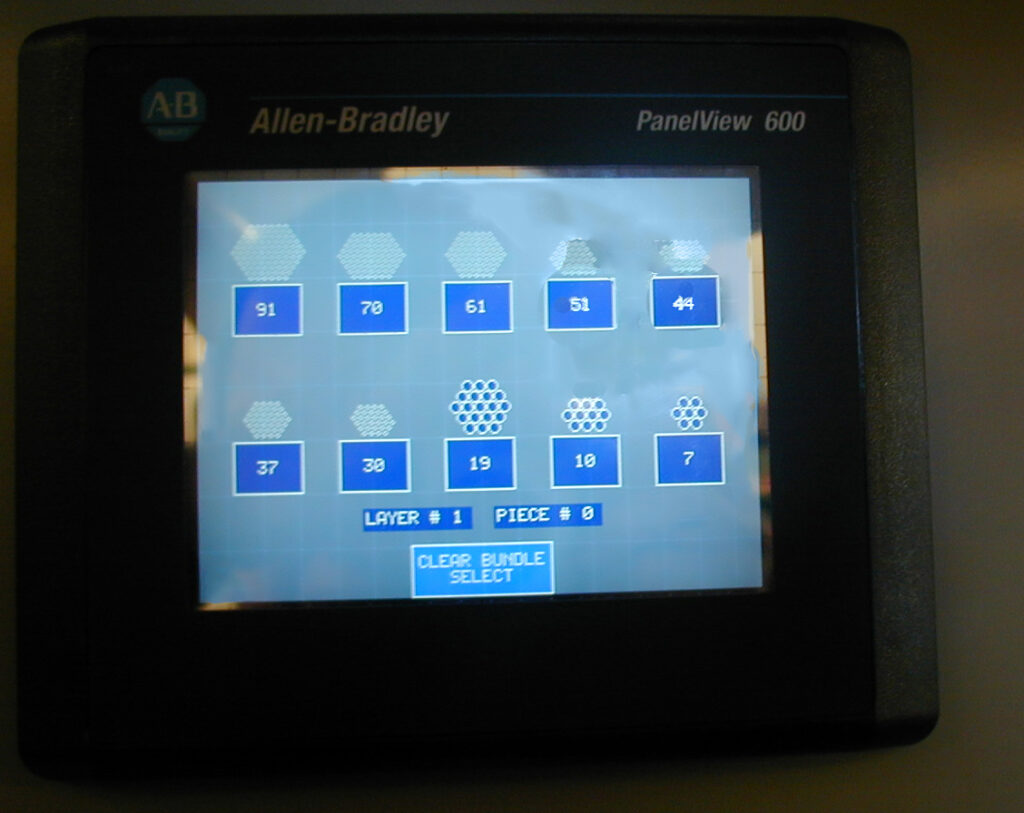

Bundler_controls

Automated Orderfilling System HMI Control Console

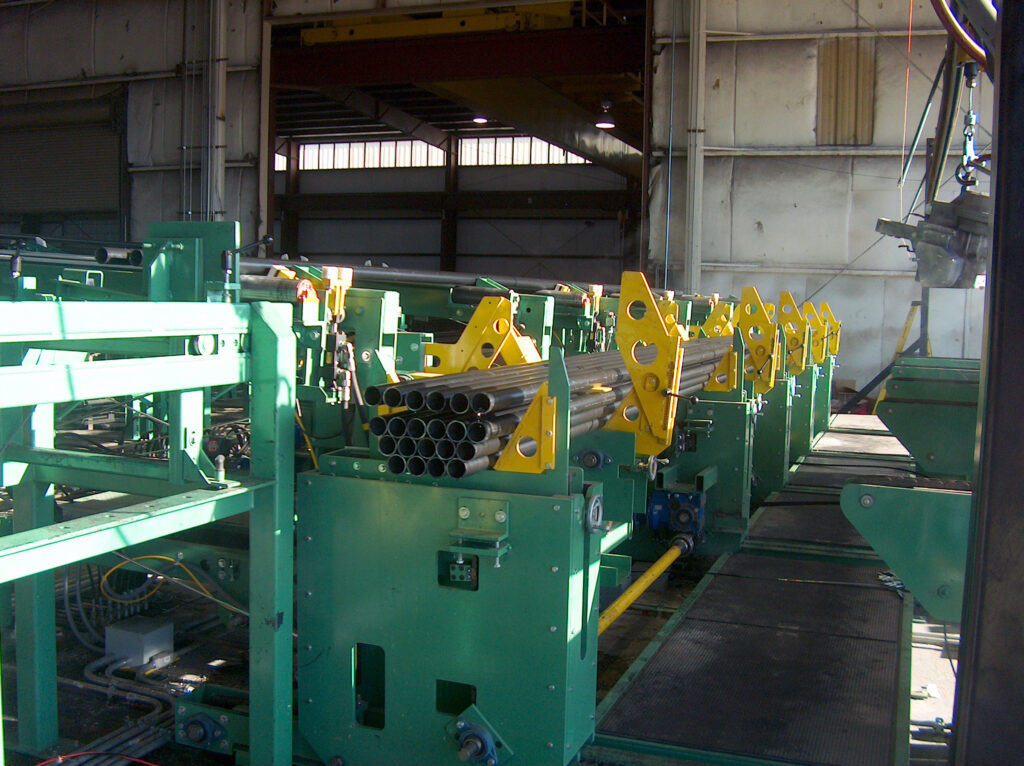

Steel Storage Systems automated packaging system for sprinkler pipe mill
